3000V 6000V Electric End Suction Centrifugal Pump 125m Head For Clean Water

Name: 3000V 6000V Electric End Suction Centrifugal Pump 125m Head For Clean Water
Brand: SANCHANG
Price: 1 USD

China 3000V 6000V Electric End Suction Centrifugal Pump 125m Head For Clean Water wholesale

Brand Name : SANCHANG

Model Number : IS80-50-250

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1 pcs

Price : Negotiated

Payment Terms : L/C, T/T

Supply Ability : 300 pcs/month

Delivery Time : 30 working days

Packaging Details : Plywood Case

Flow Capacity : 6 - 480m3/h

Delivery Head : 5 - 125m

Outlet Dia. : 32 - 350mm

Working Pressure : ≤ 1.5 MPa

Liquid Temperature : 0 - 80 ℃

Application : Clean Water, Sewage, Hot Water, Corrosive Liquid, Mining Water

Material : Cast Iron, Cast Steel, S.S304, S.S316, Duplex S.S2205

Driven By : Electric Motor / Diesel Engine

Voltage : 380V/415V/440V/460V/3000V/6000V

Speed : 1480/2980rpm

Seal : Gland Packing/Mechanical Seal

Frequency : 50/60Hz

Contact Now

Horizontal End Suction Centrifugal Pump IS80-50-250 Series for Clean Water

The IS series single stage end suction centrifugal pump is could be used to transfer clean liquid, sewage water, drink and wine, chemical liquid, hot liquid by selecting different flow passage parts. The pump is constructed with single impeller, horizontal installed, radial split volute casing with foot support and single entry impeller, end suction, vertical discharge.

The IS Series base mounted end suction centrifugal pumps deliver the highest efficiencies, performance and durability. All pumps could be featured with stainless steel impellers and an expanded efficiency island for efficient pumping across the widest range of operational conditions reducing electricity consumption and improving overall system performance.

The combination of variable speed drives with the IS series end suction centrifugal pumps creates a highly energy efficient pump and drive package. The extensive efficiency profile enables users to maintain significantly higher levels of efficiency over a much wider range of operating conditions. The IS Series end suction pump dramatic improvement in efficiency is the result of cutting edge computational fluid dynamics (CFD) design technology, deep hydraulic engineering expertise.

Main Performance Data

Flow: 15 - 60 m3/h

Delivery Head: 15 - 85m

Inlet/Outlet Dia.: 80/50mm

Working Pressure: ≤ 1.2Mpa

Solid Particle: ≤ 80mg/L

Liquid Temp.: 0℃ - 80℃

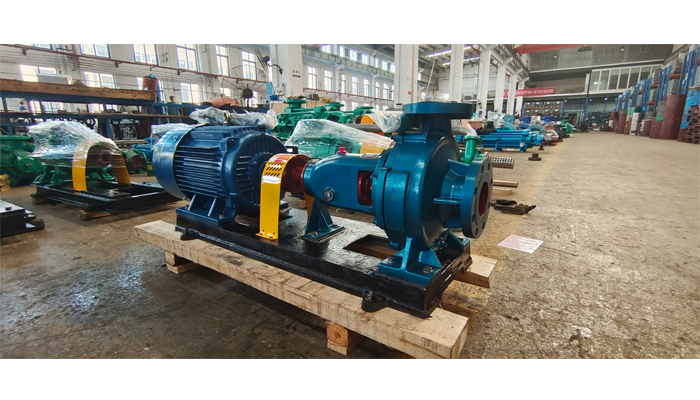

3000V 6000V Electric End Suction Centrifugal Pump 125m Head For Clean Water

Model Instruction

E.G.: IS/IR/IY100-80-160A

IS: Single stage end suction pump (for clean water)

IR: Single stage end suction pump (for hot water)

IY: Single stage end suction pump (for oil liquid)

100: Inlet diameter is 100mm

80: Outlet diameter is 80mm

160: Rate impeller diameter is 160mm

A(B,C....): Impeller code

Applications

Industrial water supply and discharge,

Food, wine, drink, drug industry,

Clean & Hot water transferring,

Chemical liquid transferring,

Sea water desalination & transferring,

Factory & residential drink water supply,

Fibre processing industry, Paper & pulp industry

Sugar industry, Heading & Air conditioning,

Enviromental protection engineering.

Main Parts Configuration

The pump could be applied to transfer different kinds of liquid by customized wet parts, here followed our recommendation of main configuration:

Parts Name	Clean Water	Sewage Water	Hot Water	Oil LIquid
Pump Body	Cast Iron	Ductile Iron	Cast Steel/S.S304	S.S304
Shaft	Carbon Steel	40Cr	S.S420/S.S304	S.S304
Shaft Sleeve	Carbon Steel	40Cr	S.S420/S.S304	S.S304
Impeller	Cast Iron	Ductile Iron	Cast Steel/S.S304	S.S304
Wearing Ring	Cast Iron	Ductile Iron	Cast Steel/S.S304	S.S304
Bearing	China Make/NSK/SKF
Seals	PTFE Packing Seals / Mechanical Seals

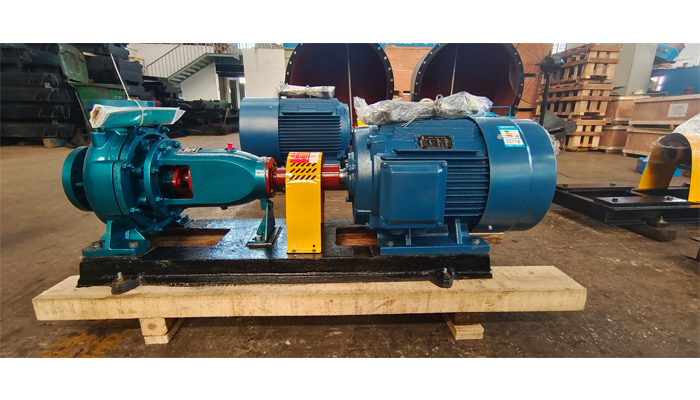

3000V 6000V Electric End Suction Centrifugal Pump 125m Head For Clean Water
