ISF Series 415V 440V 350gpm Fire Fighting Centrifugal Pump Frame Mounted

Name: ISF Series 415V 440V 350gpm Fire Fighting Centrifugal Pump Frame Mounted
Brand: SANCHANG
Price: 1 USD

Brand Name : SANCHANG

Model Number : IS-F100-65-315

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1 pcs

Price : Negotiated

Payment Terms : L/C, T/T

Supply Ability : 300pcs/month

Delivery Time : 45 working days

Packaging Details : Plywood Case

Flow Capacity : 350gpm

Delivery Head : 130m

Inlet/Outlet Dia. : DN100/DN65mm

Working Pressre : <1.95MPa

Liquid Temperature : 0-80 ℃

Application : Clean water, Sewage, Hot water, Corrosive liquid, Mining water

Material : Cast Iron, Cast Steel, S.S304, S.S316, Duplex S.S2205

Driven By : Electric Motor / Diesel Engine

Voltage : 380V/415V/440V/460V/660V

Speed : 2980/3560rpm

Seal : Gland packing/Mechanical seal

Frequency : 50 /60 Hz

Contact Now

End Suction Fire Fighting Water Pump IS-F100-65-315 (350gpm 130m)

Description

A fire fighting water pump is a centrifugal pump which is used for pumping fire-fighting water. Fire-fighting pumps can be designed for transportable use (e. g. on fire-fighting vehicles or as portable fire pumps) or for stationary use (e. g. hydrants, sprinkler systems).

The ISF series Horizontal End Suction Fire Fighting Water Pumps are engineered for reliable operation upon stationary use. All fabricated parts are standardized and accurately machined for true alignment, increasing overall durability. Precision balancing of all rotating components provides mechanical dependability, reliable operation and minimal maintenance. Impellers are constructed with double inlets that practically eliminated end thrust while boosting operating efficiency.

The highly efficient end suction pump is one of the simplest types of centrifugal pump that features motor slide rails and a back pull out design allowing for ready access and ease of maintenance. It’s a precision-made pump suitable for electric/diesel drives, designed to withhold temperatures of up to 100 deg.C.

Features

* UL / FM Complied
* Electric and Diesel Speeds
* Back Pullout Design for Easy Pump Service without Disconnecting Pipe
* Frame-Mounted Design
* Small Footprint Ideal for Retrofit
* Designed for Installations such as Schools, Office Buildings, and Hospitals

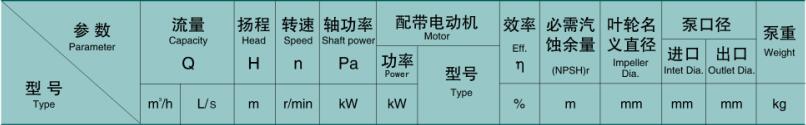

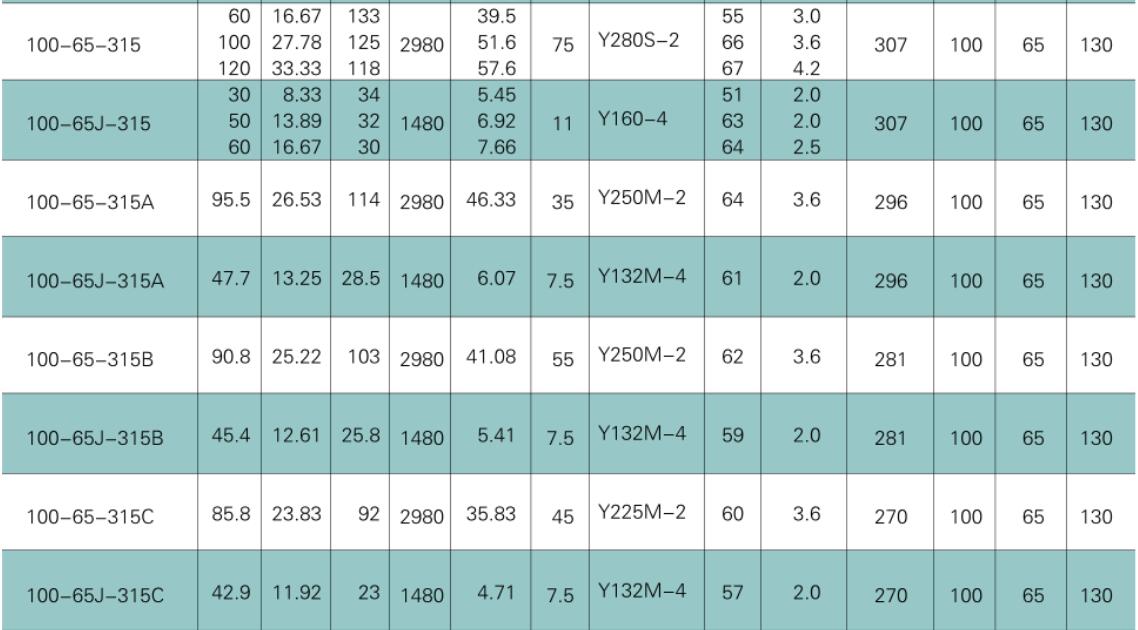

Parameters of COS-F series Split Case Fire Fighting Water Pump

Flow Capacity	350 gpm	Delivery Head	130 m
Inlet/Outlet Dia.	DN100/DN65 mm	Working Pressure	≤ 1.95 MPa
Liquid Temperature	0 - 80 ℃	Driven By	Electric Motor / Diesel Engine
Seal Type	Mechanical seal / Gland packing	Liquid	Clean water or similar
Material of Construction	Cast Iron / Cast Steel / S.S304 / S.S316 / Duplex S.S2205

ISF Series 415V 440V 350gpm Fire Fighting Centrifugal Pump Frame Mounted

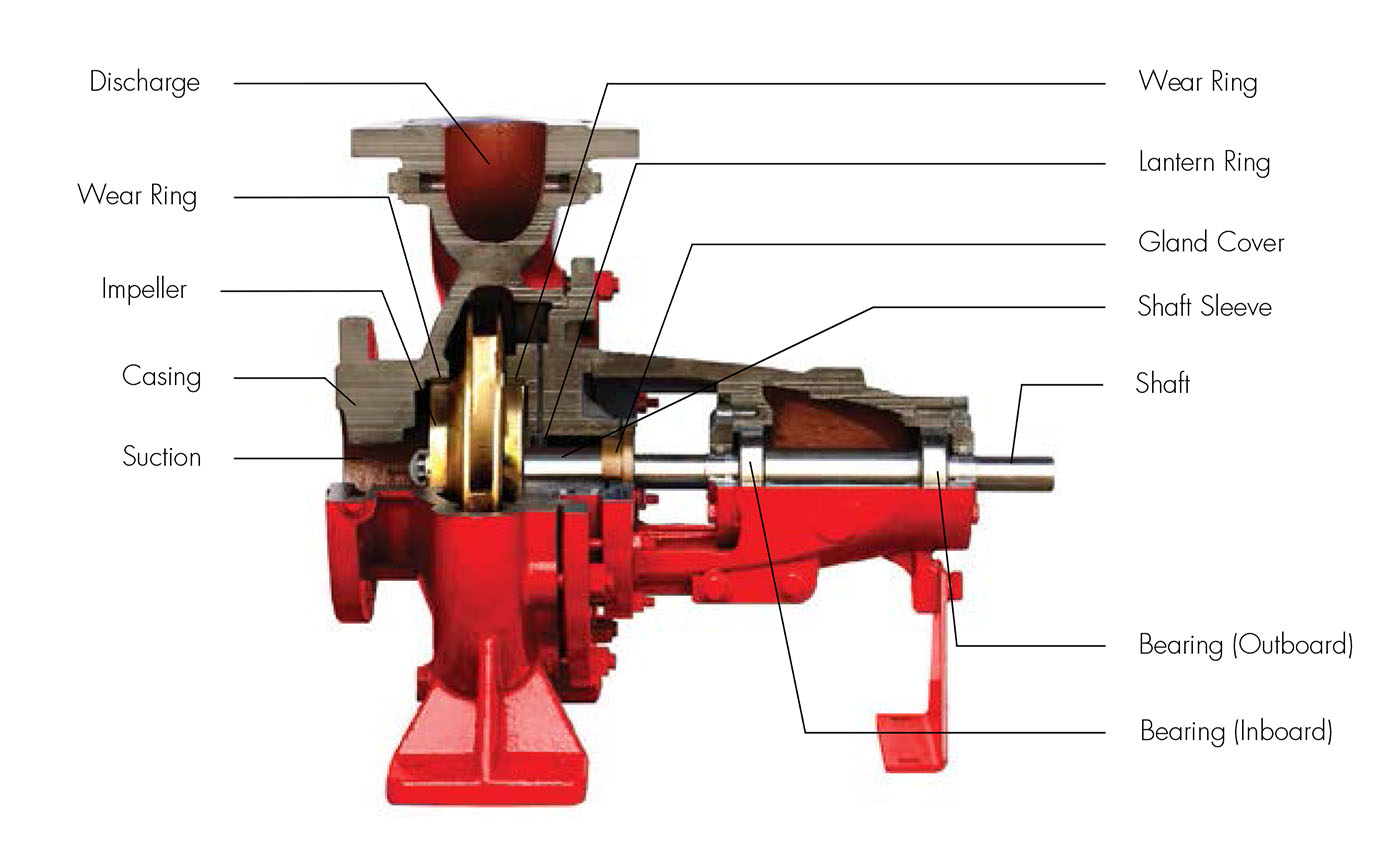

Main Parts Configuration

To meet the NFPA20 standards, the pump was constructed with the following materials:

ISF Series 415V 440V 350gpm Fire Fighting Centrifugal Pump Frame Mounted

Parts Name	Material of Construction (Comply with NFPA20)
Pump Casing	Ductile Iron/S.S304/S.S316
Shaft	40Cr / 35CrMo / 42CrMo/S.S420
Shaft Sleeve	S.S304/S.S316
Impeller	S.S304/S.S316/Bronze
Wear Ring	S.S304/S.S316/Bronze
Bearing	China Make/NSK/SKF
Seals	PTFE Packing Seals/Mechanical Seals
