Horizontal Ring Section Stainless Steel Sea Water Pump 96-144m3/H 380V 400V

Sea water pumps are indispensable to waterfront development projects and aquaculture facilities. Sanchang has performed field tests in various marine construction projects under severe conditions over many years, in collaboration with general contractors, and applied the obtained know-how to developing seawater-resistant pumps. Sanchang also considers economic efficiency important and, therefore, designs pumps with "as many standardized materials as possible."

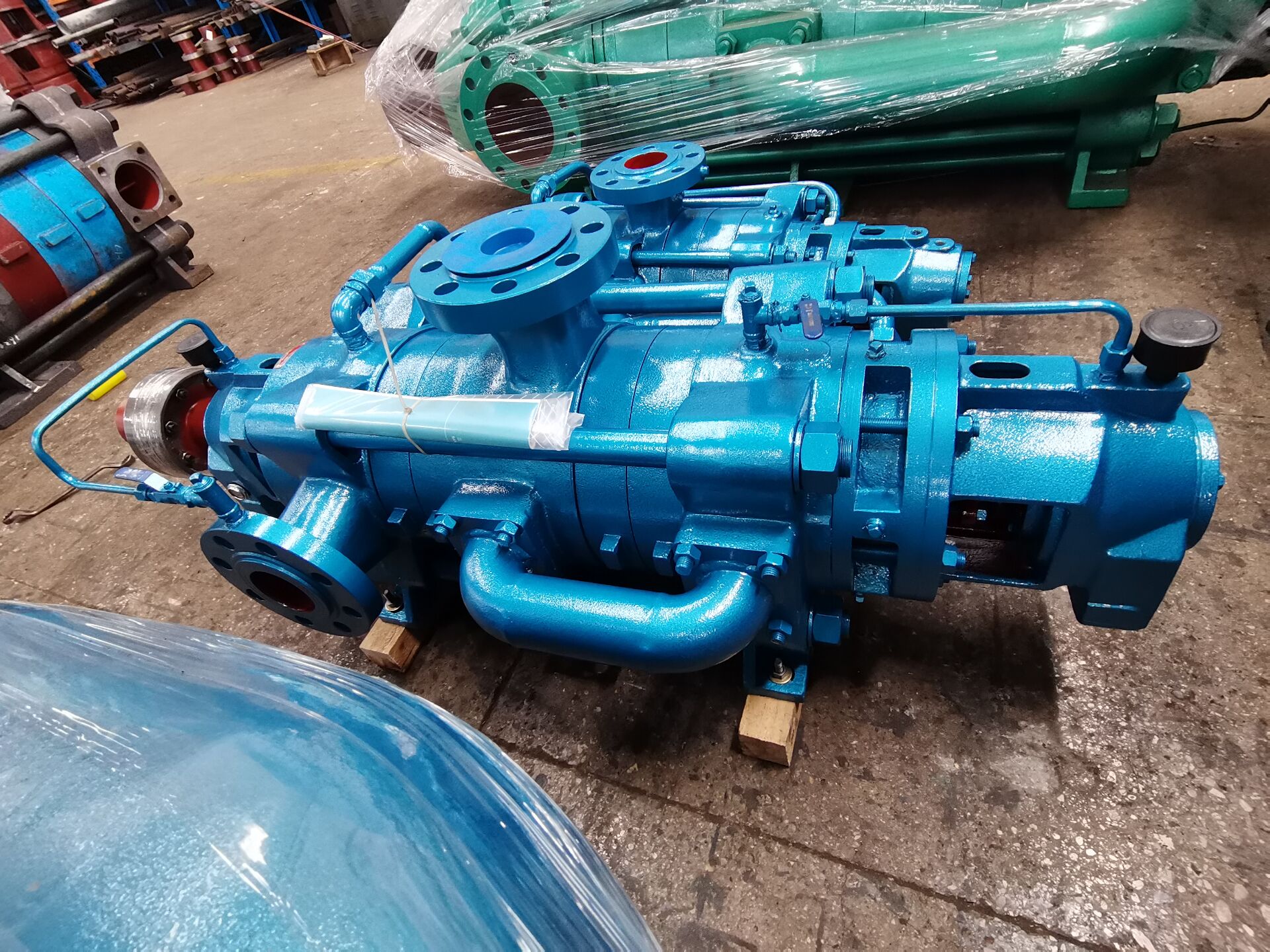

Our Horizontal Ring Section Multistage Centrifugal Stainless Steel Sea Water Pump is a utility-grade, high-pressure, ring section pump with heavy duty, segmental ring, diffuser design. Axial thrust balance device with stacked rotor construction. All wet parts could be customized according to different kinds of chemical property. Galvanic Metal, Stainless Steel, Duplex Stainless Steel, Bronze all could be customized according to clients' requirement.

• Stator- It consists of inlet, middle and outlet sections and the guide vane etc. with the take-up bolt tightly clamping all sections to form a working room. The inlet of it stands horizontally while the outlet vertically upward.

• Rotor - It consists of the shaft, impeller, balancing disk and shaft sleeve etc. The shaft passes the power to the impeller to have it work. The balancing disk balances the axial force, and replaceable shaft sleeve is mounted on both sides of the shaft to protect it.

• Bearings - There are rolling bearing and sliding bearing. The rolling bearing consists of bearing seat, bearing, bearing gland and using grease lubrication. The sliding bearing consists of bearing body, cover, liner, dust-proof disk, oil level, oil throwing ring etc. and using thin oil lubrication.

• Shaft seal - The shaft is sealed with packing and the shaft seal consists of the sealing contents, packing, baffle. the liquid in the sealing work-room fuctions water-sealing, water cooling and water lubricating and the water for water sealing comes from the pressure water inside of the pump, The mechanical seal also can be used as requested.

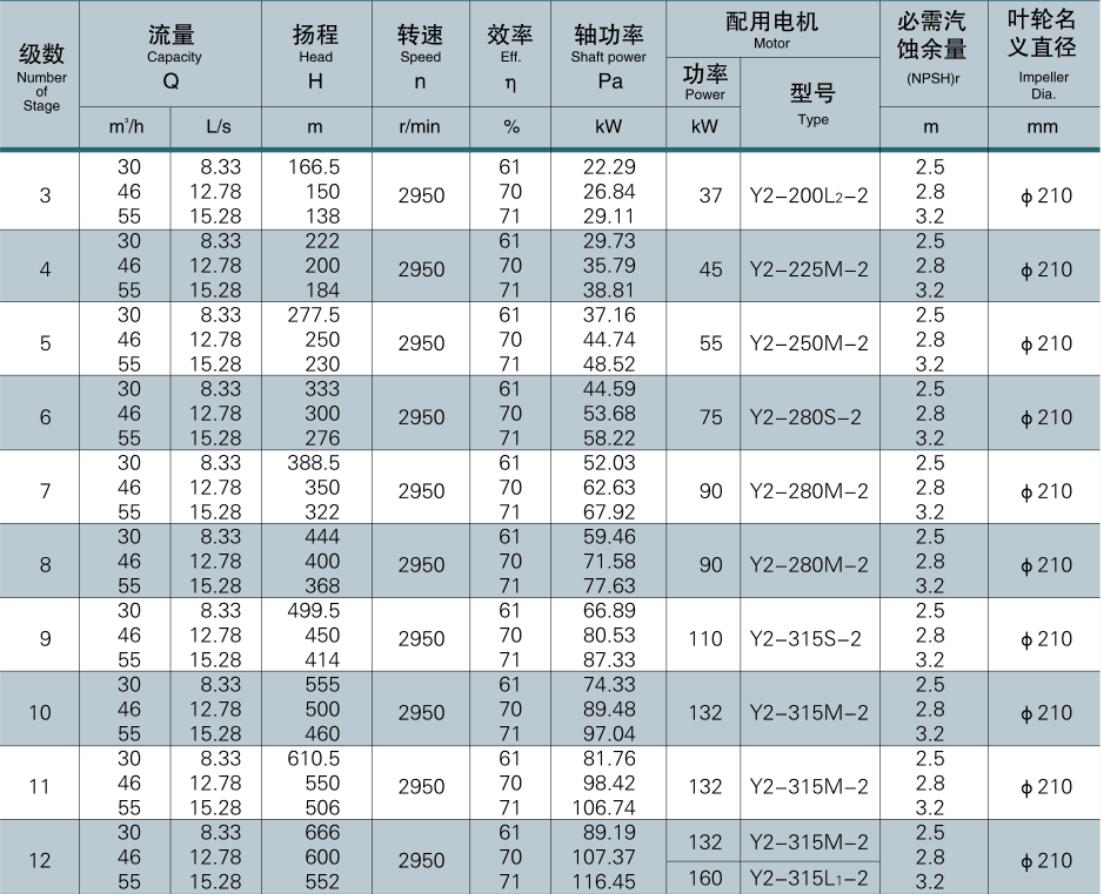

Parameters
