SS304 120m3/H Centrifugal Electric Sea Water Pump utility grade

Brand Name : SANCHANG

Model Number : ZDF120-100X6P

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1 pcs

Price : Negotiated

Payment Terms : L/C, T/T

Supply Ability : 300pcs/month

Delivery Time : 30 working days

Packaging Details : Plywood Case

Flow Capacity : 96-144m3/h

Delivery Head : 360-1260m

Inlet/Outlet Dia. : 125mm/125mm

Working Pressure : <18.9MPa

Liquid Temperature : 0-80 ℃

Application : Sea Water, Corrosive Liquid, Mining Water

Material : Cast Iron, Cast Steel, S.S304, S.S316, Duplex S.S2205

Dirven By : Electric Motor / Diesel Engine

Voltage : 380V/400V/415V/440V/460V

Speed : 2980/3560rpm

Seal : Gland Packing/Mechanical Seal

Frequency : 50/60Hz

Contact Now

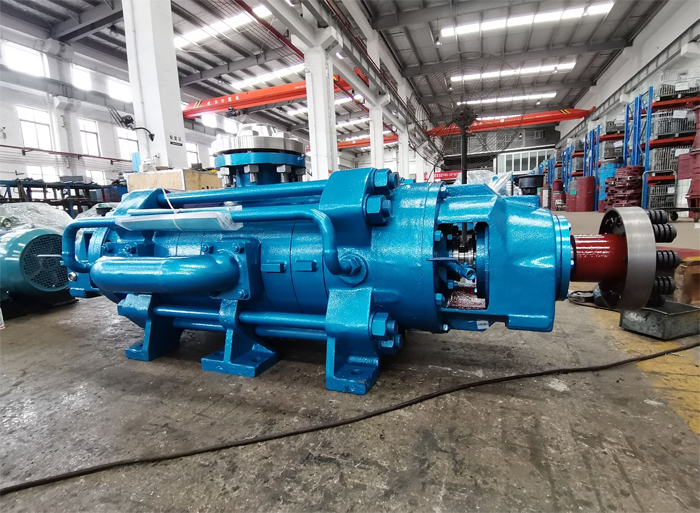

Horizontal Ring Section Multistage Centrifugal Stainless Steel Sea Water Pump ZDF120-100X6P
Description

Sea water pumps are indispensable to waterfront development projects and aquaculture facilities. Sanchang has performed field tests in various marine construction projects under severe conditions over many years, in collaboration with general contractors, and applied the obtained know-how to developing seawater-resistant pumps. Sanchang also considers economic efficiency important and, therefore, designs pumps with "as many standardized materials as possible."

Our Horizontal Ring Section Multistage Centrifugal Stainless Steel Sea Water Pump is a utility-grade, high-pressure, ring section pump with heavy duty, segmental ring, diffuser design. Axial thrust balance device with stacked rotor construction. All wet parts could be customized according to different kinds of chemical property. Galvanic Metal, Stainless Steel, Duplex Stainless Steel, Bronze all could be customized according to clients' requirement.

In seawater applications, the materials of the shaft and impeller must be carefully matched to avoid shaft corrosion and expensive repairs. After long years of research, Sanchang developed an exclusive "seawater-resistant configuration" suited to protect the shaft against corrosion by seawater.

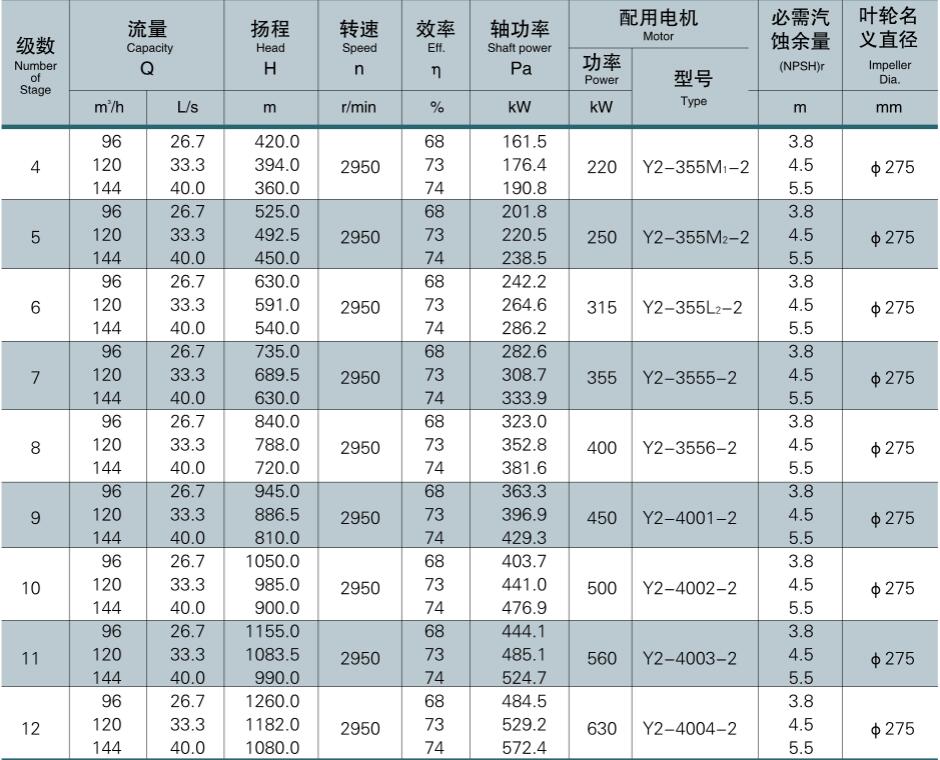

Parameters

Flow Capacity 96-144 m3/h Delivery Head 360-1260 m
Inlet/Outlet Dia. DN125/DN125 mm Working Pressure ≤ 18.9 MPa
Liquid Temperature 0 - 120 ℃ Driven By Electric Motor / Diesel Engine
Seal Type Mechanical seal / Gland packing Liquid Sea Water or similar
Material of Construction Cast Iron / Cast Steel / S.S304 / S.S316 / Duplex S.S2205

SS304 120m3/H Centrifugal Electric Sea Water Pump utility grade

Main Parts Configuration
The Stainless Steel Sea Water Pump could be applied to transfer different kinds of liquid by customized wet parts, here followed our recommendation of main configuration:
Parts Name Clean Water Sewage Hot Water Corrosive Liquid Oil Liquid
Pump Body Cast Iron Ductile Iron Cast Steel/S.S304 S.S304/S.S316/S.S2205 S.S304/S.S316
Shaft Cast Iron S.S420 S.S420/42CrMo S.S630 S.S420/40Cr
Shaft Sleeve Carbon Steel S.S420 S.S304 S.S316/S.S630/S.S2205 S.S304/S.S316
Impeller Cast Iron Ductile Iron Cast Steel/S.S304 S.S304/S.S316/S.S2205 S.S304/S.S316
Wearing Ring Cast Iron Ductile Iron Cast Steel/S.S304 S.S304/S.S316/S.S2205 S.S304/S.S316
Bearing China Make/NSK/SKF/Customized
Seals Mechanical Seals/Gland Packing Seals

SS304 120m3/H Centrifugal Electric Sea Water Pump utility grade
